Week 4: Milling a PCB

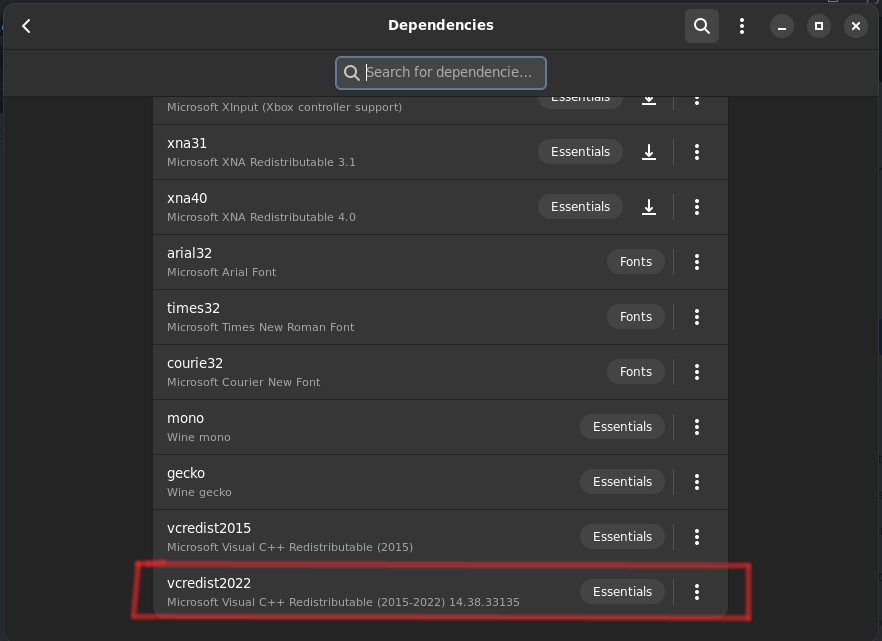

This week's task was to mill a basic PCB and solder the necessary parts to make it all function. The main issue i ran into was just the software for the carvera, but i got both MackeraCAM and the controller to run on Linux. I had to use the program Bottles. Bottles makes it blissfully easy to install missing dependencies and manage runtime options. The main dependencies i needed for the software to run was Vcredist 2022 for the Visual C++ libraries.
Weekly Progress: Milling and soldering the PCB

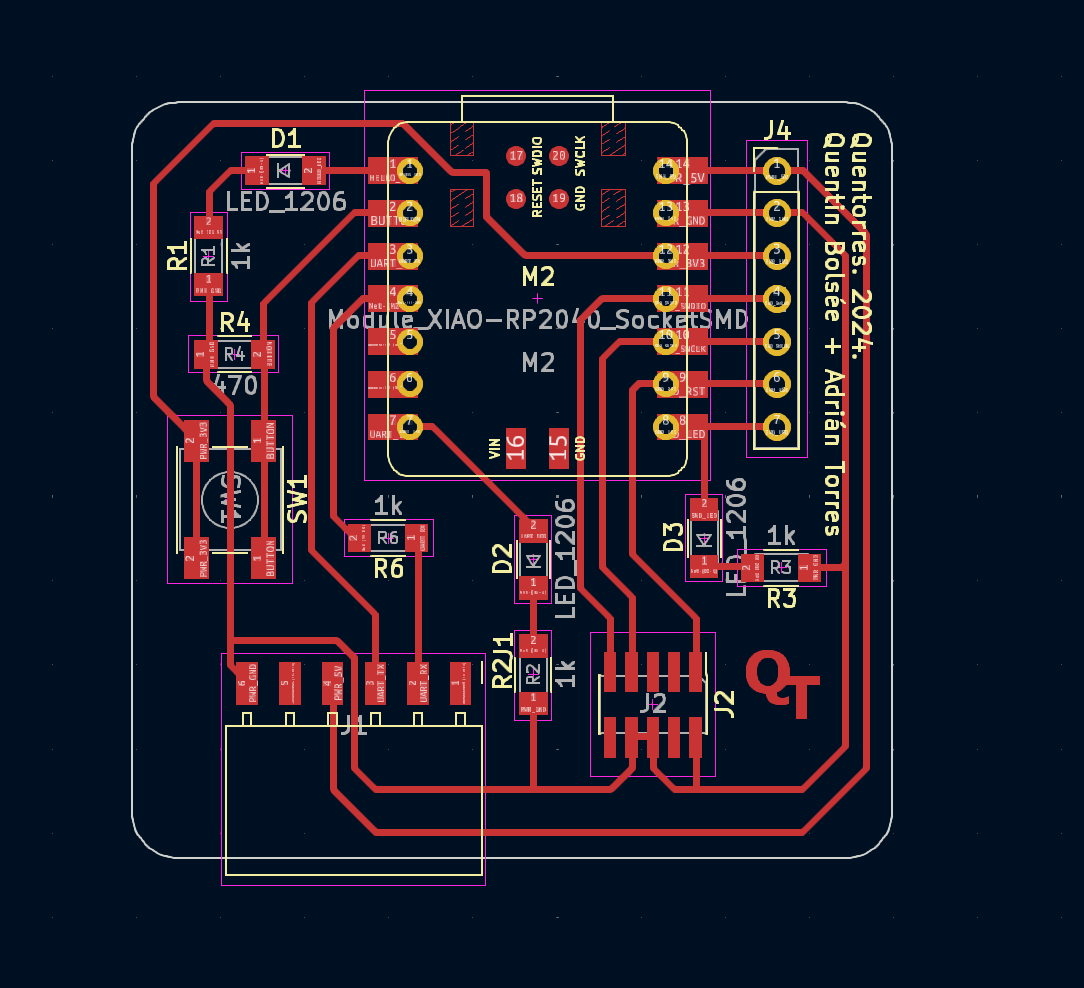

The Board in Kicad.

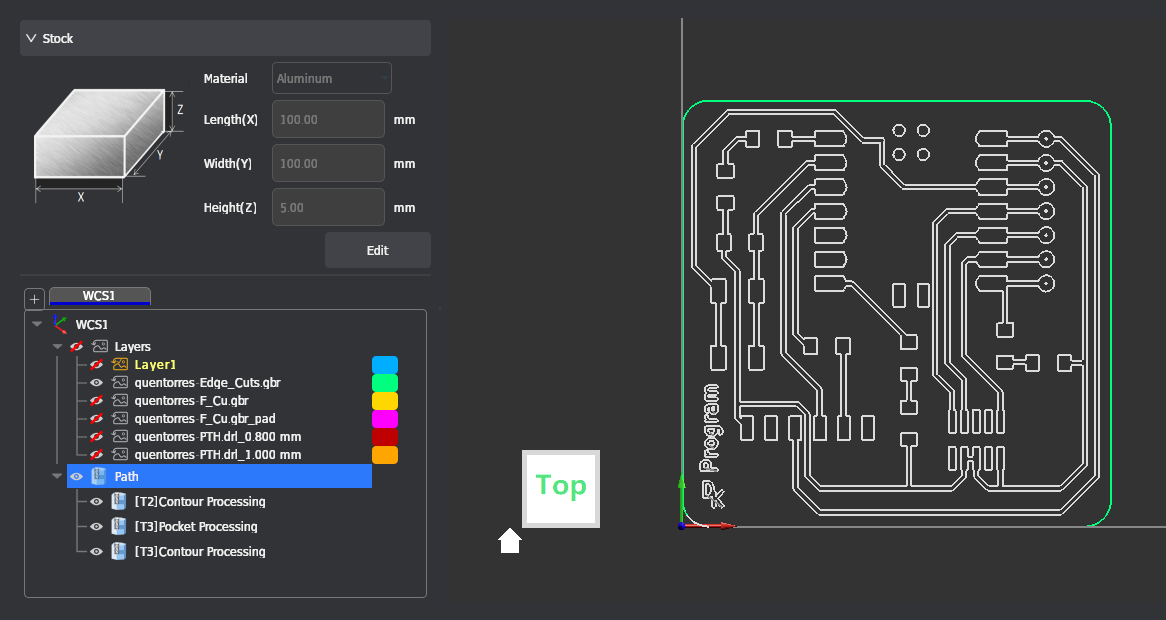

Create the Gcodes using MackeraCAM.

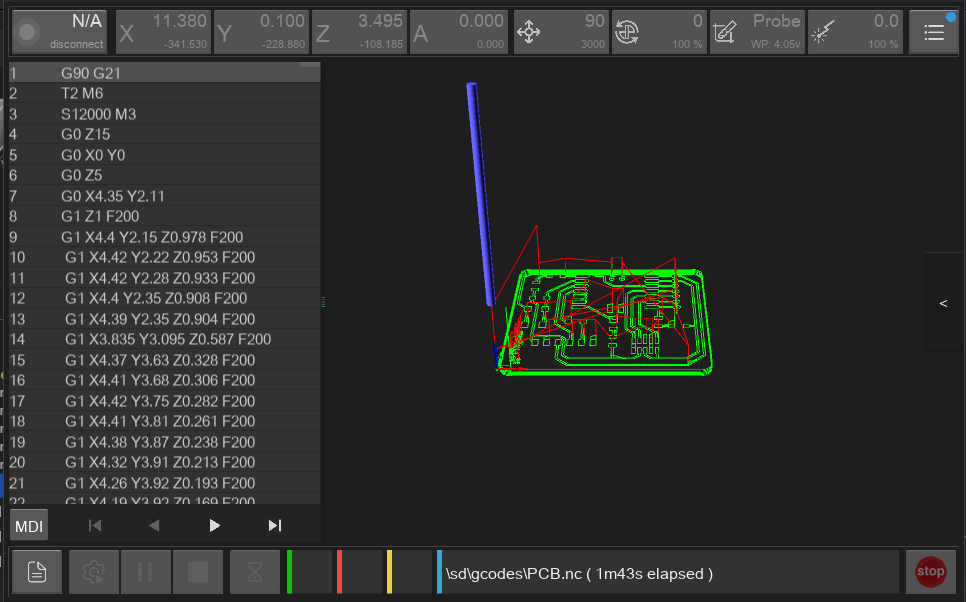

Sending PCB to Carvera.

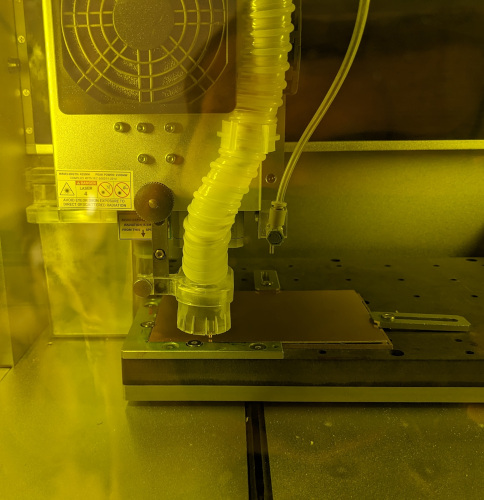

Milling the PCB.

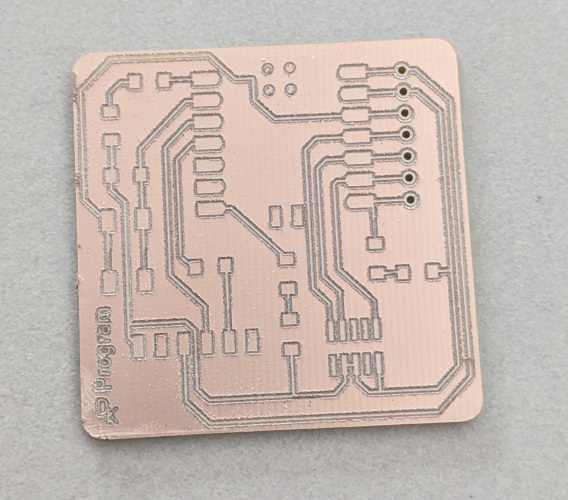

Finished Milling PCB.

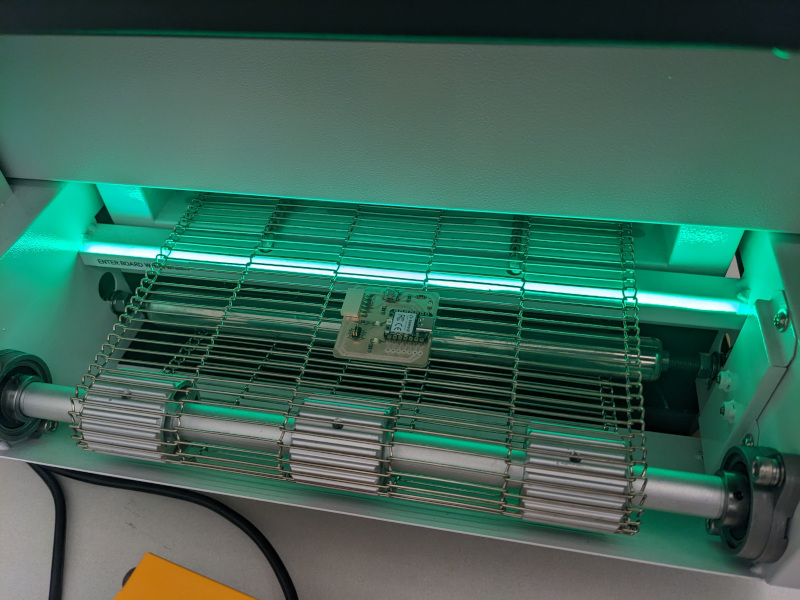

Soldering and sending the PCB in the oven.

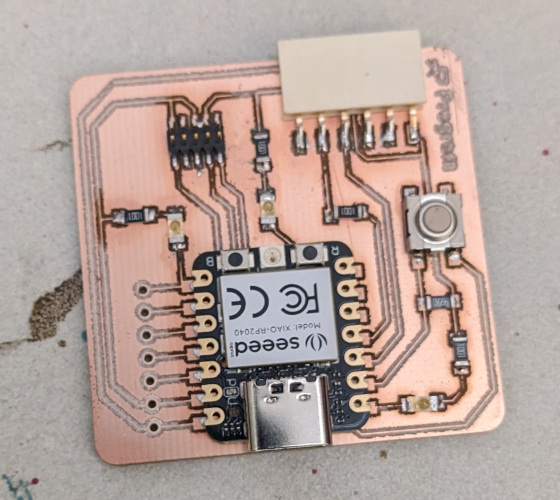

Finished PCB
